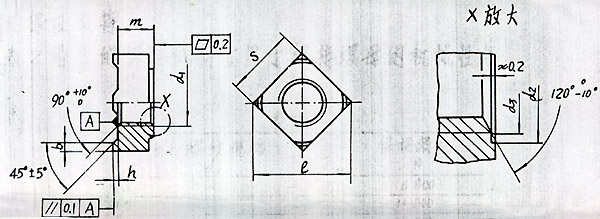

DIN928-1983 标准
螺纹规格d1 |
b |
d2 |
d3 |
e |
h |
m |
s |
千件重量 |
|||
DIN 13 |
DIN 13 和 UNF-2B |
允差 |
h13 |
max |
min |
±0.1 |
h14 |
h14 |
kg |
||
M4 |
- |
- |
0.8 |
±0.15 |
5 |
4.2 |
9 |
0.6 |
3.5 |
7 |
0.81 |
M5 |
- |
- |
1 |
6 |
5.25 |
12 |
0.8 |
4.2 |
9 |
1.70 |
|
M6 |
- |
- |
1.2 |
7.5 |
6.3 |
13 |
0.8 |
5 |
10 |
2.40 |
|
M7 |
- |
- |
1.2 |
8 |
7.35 |
14 |
0.8 |
5.5 |
11 |
3.05 |
|
M8 |
(M8x1) |
- |
1.5 |
10 |
8.4 |
18 |
1 |
6.5 |
14 |
6.50 |
|
M10 |
(M10x1.25) |
(M10x1) |
1.8 |
±0.2 |
12.5 |
10.5 |
22 |
1.2 |
8 |
17 |
11.3 |
- |
- |
7/16-20 |
2 |
13.5 |
11.7 |
25 |
1.4 |
9 |
19 |
16.5 |
|
M12 |
(M12x1.25) |
(M12x1.5) |
2 |
13.5 |
12.6 |
25 |
1.4 |
9.5 |
19 |
16.6 |
|
M14) |
(M14x1.5) |
- |
2.5 |
16.8 |
14.7 |
28 |
1.4 |
11 |
22 |
26.7 |
|
(M16) |
(M16x1.5) |
- |
2.5 |
18.8 |
16.8 |
32 |
1.6 |
13 |
24 |
35.8 |
|
